Learn Basic PL / SQL (for beginner)

PLSQL Introduction

PL/SQL is Oracle’s procedural language extension to SQL, the non-procedural relational database language. With PL/SQL, you can use SQL statements to manipulate ORACLE data and the flow of control statements to process the data. Moreover, you can declare constants and variables, define subprograms (procedures and functions), and trap run time errors.Thus, PL/SQL combines the data manipulating power of SQL with the data processing power of procedural languages.

WHY PL/SQL ?

  • Acts as host language for stored procedures and triggers.
  • Provides the ability to add middle tier business logic to client/server applications.
  • Provides Portability of code from one environment to another
  • Improves performance of multi-query transactions.
  • Provides error handling
  • When something is too complicated for SQL
  • When conditional branching and looping are needed

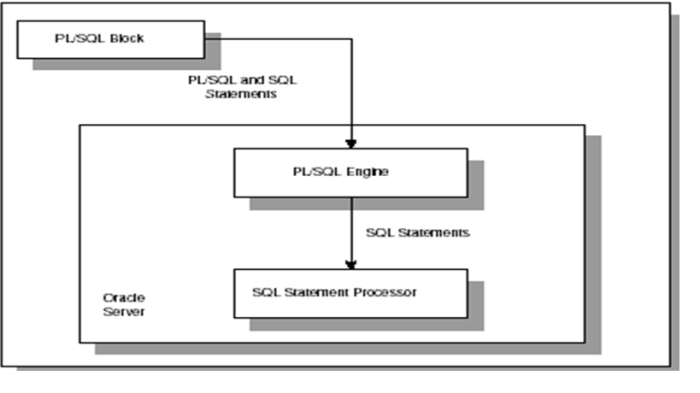

PL / SQL Engine


PL / SQL Blocks

  • PL/SQL blocks can be divided into two groups:

1.Named

2.Anonymous.

  • Named blocks are used when creating subroutines. These subroutines are procedures, functions, and packages.
  • The subroutines can be stored in the database and referenced by their names later on.
  • In addition, subroutines can be defined within the anonymous PL/SQL block.
  • Anonymous PL/SQL blocks do not have names. As a result, they cannot be stored in the database and referenced later
  • PL/SQL blocks contain three sections
    • Declaration Section
    • Executable Section
    • Exception Section
  • The executable section is the only mandatory section of the block.Both the declaration and exception-handling sections are optional.

PLSQL Block Structure

PL/SQL block has the following structure:

DECLARE
Declaration statements
BEGIN
Executable statements
EXCETION
Exception-handling statements
END ;

Declaration Section

The declaration section is the first section of the PL/SQL block. It contains definitions of PL/SQL identifiers such as variables, constants, cursors and so on.

Example

DECLARE
v_first_name VARCHAR2(35) ;
v_last_name VARCHAR2(35) ;
v_counter NUMBER := 0 ;

Executable Section

  • The executable section is the next section of the PL/SQL block.
  • This section contains executable statements that allow you to manipulate the variables that have been declared in the declaration section.

Example

BEGIN

SELECT first_name, last_name  INTO v_first_name, v_last_name

FROM student  WHERE student_id = 123 ;

DBMS_OUTPUT.PUT_LINE

(‘Student name :’ || v_first_name ||‘ ’|| v_last_name);

END;

 Exception Handling Section

  • The exception-handling section is the last section of the PL/SQL block.
  • This section contains statements that are executed when a runtime error occurs within a block.
  • Runtime errors occur while the program is running and cannot be detected by the PL/SQL compiler.

EXCEPTION

WHEN NO_DATA_FOUND THEN

DBMS_OUTPUT.PUT_LINE

(‘ There is no student with student id 123 ’);

END;

PL SQL Block Example

DECLARE

v_first_name VARCHAR2(35);

v_last_name VARCHAR2(35);

BEGIN

SELECT first_name, last_name

INTO v_first_name, v_last_name

FROM student

WHERE student_id = 123;

DBMS_OUTPUT.PUT_LINE

(‘Student name: ‘||v_first_name||’ ‘||v_last_name);

EXCEPTION

WHEN NO_DATA_FOUND THEN

DBMS_OUTPUT.PUT_LINE

(‘There is no student with student id 123’);

END;/

PL SQL variables

  • Scalar   (char, varchar2, number, date, etc)
  • Composite (%rowtype)
  • LOB (large objects)
  • Variable Naming Convention
    • Two variables can have the same name if they are in different blocks (bad idea)
    • The variable name should not be the same as any table column names used in the block.



%TYPE & %ROWTYPE

%TYPE is used to declare a field with the same type as that of a specified table’s column
DECLARE

v_EmpName emp.ename%TYPE;

BEGIN

SELECT ename INTO v_EmpName

FROM emp

WHERE ROWNUM = 1;

DBMS_OUTPUT.PUT_LINE(‘Name = ‘ || v_EmpName);

END;/

PLSQL is Strongly Typed

  • All variables must be declared before their use.
  • The assignment statement: =is not the same as the equality operator=
  • All statements end with a ;

Sample Program

Set serveroutput on

DECLARE

v_inv_value number(10,2);

v_price       number(8,2) := 10.25;

v_quantity  number(8,0) := 400;

BEGIN

  v_inv_value := v_price * v_quantity;

  dbms_output.put(‘The value is: ‘);

  dbms_output.put_line(v_inv_value);

END;

/

Comments in PLSQL

DECLARE

   v_salary number(9,2) := 40000;

BEGIN

   /* this is a multi-line comment that will be ignored by the pl/sql nterpreter */

   v_salary := v_salary * 2; — nice raise

END; — end of program

Common PLSQL String Functions

  • CHR(asciivalue)
  • ASCII(string)
  • LOWER(string)
  • SUBSTR(string,start,substrlength)
  • LTRIM(string)
  • RTRIM(string)
  • LPAD(string_to_be_padded, spaces_to_pad, |string_to_pad_with|)
  • RPAD(string_to_be_padded, spaces_to_pad, |string_to_pad_with|)
  • REPLACE(string, searchstring, replacestring)
  • UPPER(string)
  • INITCAP(string)
  • LENGTH(string)

Loops & Conditional Statements

The LOOP statement is used when you are not sure how many times you want the loop body to execute and you want the loop body to execute at least once.

Syntax:

      LOOP

   {…statements…}

END LOOP;

NOTE:You can terminate a LOOP statement with either an EXIT statement or when it encounters an EXIT WHEN statement that evaluates to TRUE.

Loops Example

In this LOOP example, the LOOP would terminate when the monthly_value exceeded 4000.

LOOP

monthly_value := daily_value * 31;

EXIT WHEN monthly_value > 4000;

END LOOP;

For Loop

FOR LOOP allows you to execute code repeatedly for a fixed number of times.

Syntax:

FOR loop_counter IN [REVERSE] lowest_number..highest_number

LOOP

{…statements…}

END LOOP;

  • loop_counter is the loop counter variable in the FOR LOOP.
  • REVERSE is optional. If REVERSE is specified, the LOOP counter will count in reverse.
  • lowest_number is the starting value for loop_counter.
  • highest_number is the ending value for loop_counter.
  • statementsare the statements of code to execute each pass through the FOR LOOP.
  • You would use a FOR LOOP when you want to execute the loop body a fixed number of times.Example:FOR Lcntr IN 1..20

    LOOP

    LCalc := Lcntr * 31;

    END LOOP;

    This FOR LOOP example will loop 20 times. The counter called Lcntr will start at 1 and end at 20.

Conditional Statements

The IF-THEN-ELSE statement is used to execute code when a condition is TRUE, or execute different code if the condition evaluates to FALSE.

SYNTAX (IF-THEN)

IF condition THEN

  {…statements to execute when condition is TRUE…}

END IF;

SYNTAX (IF-THEN-ELSE)

IF condition THEN

  {…statements to execute when condition is TRUE…}

ELSE

  {…statements to execute when condition is FALSE…}

END IF;

SYNTAX (IF-THEN-ELSIF)

IF condition1 THEN

{…statements to execute when condition1 is TRUE…}

ELSIF condition2 THEN

{…statements to execute when condition2 is TRUE…}

END IF;

SYNTAX (IF-THEN-ELSIF-ELSE)

IF condition1 THEN

{…statements to execute when condition1 is TRUE…}

ELSIF condition2 THEN

{…statements to execute when condition2 is TRUE…}

ELSE

{…statements to execute when both condition1 and condition2 are FALSE…}

END IF;

Conditional Statements Example

CREATE OR REPLACE Function IncomeLevel( name_in IN varchar2 )RETURN varchar2

IS

   monthly_value number(6);

   ILevel varchar2(20);

   cursor c1 is

     SELECT monthly_income FROM employees WHERE name = name_in;

BEGIN

   open c1;

   fetch c1 into monthly_value;

   close c1;

   IF monthly_value <= 4000 THEN

     ILevel := ‘Low Income’;

   ELSIF monthly_value > 4000 and monthly_value <= 7000 THEN

     ILevel := ‘Avg Income’;

   ELSIF monthly_value > 7000 and monthly_value <= 15000 THEN

     ILevel := ‘Moderate Income’;

   ELSE

     ILevel := ‘High Income’;

   END IF;

   RETURN ILevel;

END;

Cursor

Cursor is a temporary memory area (context area) where Oracle executes SQL statements. Oracle associates every SELECT statement with a cursor to hold the query information in this context area.

An Oracle Cursor = VB recordset = JDBC ResultSet

There are two types of cursors – implicit and explicit cursor.

Implicit cursors are created for every query made in Oracle

Explicit cursor is used for the query that returns more than one row of data. These cursors are explicitly declared in the DECLARE section of the PL/SQL block.

Cursor Attributes

cursorname%ROWCOUNT  Rows returned so far

cursorname%FOUND  One or more rows retrieved

cursorname%NOTFOUND  No rows found

cursorname%ISOPEN  Is the cursor open

Declare the cursor

Open the cursor

Fetch a row

Test for end of cursor

Close the cursor

Declare: The cursor is initialized into temporary memory area.

Open: The cursor is opened which is declared, and the temporary memory area is allotted.

Fetch: Cursor which is declared and opened can now retrieve rows from data.

Close: The CLOSE statement disables the cursor, and releases the temporary memory area.

Sample Cursor Program

DECLARE

CURSOR students_cursor IS

   SELECT * from students;

v_student students%rowtype

BEGIN

DBMS_OUTPUT.PUT_LINE (‘******************’);

OPEN students_cursor;

FETCH students_cursor into v_student;

WHILE students_cursor%found LOOP

     DBMS_OUTPUT.PUT_LINE (v_student.last);

     DBMS_OUTPUT.PUT_LINE (v_student.major);

     DBMS_OUTPUT.PUT_LINE (‘******************’);

     FETCH students_cursor into v_student;

END LOOP;

CLOSE students_cursor;

END;

/

Stored Procedures

  • PL/SQL code stored in the database and executed when called by the user.
  • Called by procedure name from another PL/SQL block or using EXECUTE from SQLPlus.

For example   EXEC SQR(50)

SYNTAX

CREATE [OR REPLACE] PROCEDURE procedure_name

  [ (parameter [,parameter]) ]

IS

  [declaration_section]

BEGIN

  executable_section

[EXCEPTION

  exception_section]

END [procedure_name];

There are three types of parameters that can be declared:

IN – The parameter can be referenced by the procedure or function. The value of the parameter can not be overwritten by the procedure or function.

OUT – The parameter can not be referenced by the procedure or function, but the value of the parameter can be overwritten by the procedure or function.

IN OUT – The parameter can be referenced by the procedure or function and the value of the parameter can be overwritten by the procedure or function.

Stored Procedure Example

CREATE OR REPLACE Procedure UpdateCourse ( name_in IN varchar2 )

IS

cnumber number;

   cursor c1 is

   SELECT course_number FROM courses_tbl WHERE course_name = name_in;

BEGIN

   open c1;

   fetch c1 into cnumber;

   if c1%notfound then cnumber := 9999;

   end if;

   INSERT INTO student_courses( course_name,course_number )

   VALUES( name_in,cnumber );

   commit;

   close c1;

EXCEPTION

WHEN OTHERS THEN

   raise_application_error(-20001,’An error was encountered – ‘||SQLCODE||’ -ERROR- ‘||SQLERRM);

END;

Stored Functions

PL/SQL user defined functions are stored in the database and executed when a function call is made in code: example x := SQUARED(50)

The major difference between a procedure and a function is, a function must always return a value, but a procedure may or may not return a value.

SYNTAX:

CREATE [OR REPLACE] FUNCTION function_name

  [ (parameter [,parameter]) ]

RETURN return_datatype IS | AS

  [declaration_section]

BEGIN

  executable_section

[EXCEPTION

  exception_section]

END [function_name];

Return Type: The header section defines the return type of the function. The return datatype can be any of the oracle datatype like varchar, number etc.

The execution and exception section both should return a value which is of the datatype defined in the header section.

Stored Function Example

CREATE OR REPLACE Function FindCourse( name_in IN varchar2 )RETURN number

IS

cnumber number;

   cursor c1 is

   SELECT course_number FROM courses_tbl  WHERE course_name = name_in;

BEGIN

   open c1;

   fetch c1 into cnumber;

   if c1%notfound then

     cnumber := 9999;

   end if;

   close c1;

RETURN cnumber;

EXCEPTION

WHEN OTHERS THEN

   raise_application_error(-20001,’An error was encountered – ‘||SQLCODE||’ -ERROR- ‘||SQLERRM);

END;

PLSQL Packages

PL/SQL packages are schema objects that groups logically related PL/SQL types, variables and subprograms.

A package will have two mandatory parts:

  • Package specification
  • Package body or definition

Package Specification

The specification is the interface to the package.

It just DECLARES the types, variables, constants, exceptions, cursors, and subprograms that can be referenced from outside the package.

In other words, it contains all information about the content of the package, but excludes the code for the subprograms.

All objects placed in the specification are called publicobjects.

Any subprogram not in the package specification but coded in the package body is called a privateobject.

Example:

CREATE PACKAGE cust_sal AS

  PROCEDURE find_sal(c_id customers.id%type);

END cust_sal;

/

Package Body

The package body has the codes for various methods declared in the package specification and other private declarations, which are hidden from code outside the package.

The CREATE PACKAGE BODY Statement is used for creating the package body.

Example

CREATE OR REPLACE PACKAGE BODY cust_sal AS

  PROCEDURE find_sal(c_id customers.id%TYPE) IS

  c_sal customers.salary%TYPE;

  BEGIN

  SELECT salary INTO c_sal

  FROM customers WHERE id = c_id;   dbms_output.put_line(‘Salary: ‘|| c_sal);

  END find_sal;

END cust_sal;

/

Triggers

PL/SQL code executed automatically in response to a database event, typically DML.

Like other stored procedures, triggers are stored in the database.

Often used to:

Enforce complex constraints

Trigger related actions

Implement auditing “logs”

Pop a sequence when creating token keys

Triggers do not issue transaction control statements (such as commit). Triggers are part of the SQL transaction that invoked them.

USER_TRIGGERS provides a data dictionary view of triggers.

Triggers Example

CREATE OR REPLACE TRIGGER LOGSTUDENTCHANGES

BEFORE INSERT OR DELETE OR UPDATE of Major ON STUDENTS

FOR EACH ROW

DECLARE

v_ChangeType CHAR(1);

v_sid varchar2(10);

BEGIN

IF INSERTING THEN

     V_ChangeType := ‘I’;

     v_sid := :new.sid;

ELSIF UPDATING THEN

     V_ChangeType := ‘U’;

     v_sid := :new.sid;

ELSE

     V_ChangeType := ‘D’;

     v_sid := :old.sid;

END IF;

INSERT INTO MAJ_AUDIT (change_type, changed_by, timestamp, SID, old_major, new_major) VALUES (v_ChangeType, USER, SYSDATE, v_sid, :old.major, :new.major);

END LOGSTUDENTCHANGES;

Sequences

You can create an auto number field by using sequences. A sequence is an object in Oracle that is used to generate a number sequence. This can be useful when you need to create a unique number to act as a primary key

CREATE SEQUENCE <sequence_name>

|INCREMENT BY <number>|

|START WITH <start_value>|

|MAXVALUE <maximum_value>|NOMAXVALUE|

|MINVALUE <minimum_value>|

|CYCLE|NOCYLE|

|CACHE <number of values>|NOCACHE|

To pop the next sequence use:

SEQUENCENAME.NEXTVAL     (CURRVAL shows last pop)
